Thin-film and printed electronics design

Touch Screen Design

Custom Designed Touch Screens for Specialized Applications

Portable touch tablet devicePortable touch tablet edge bezel and connector detail

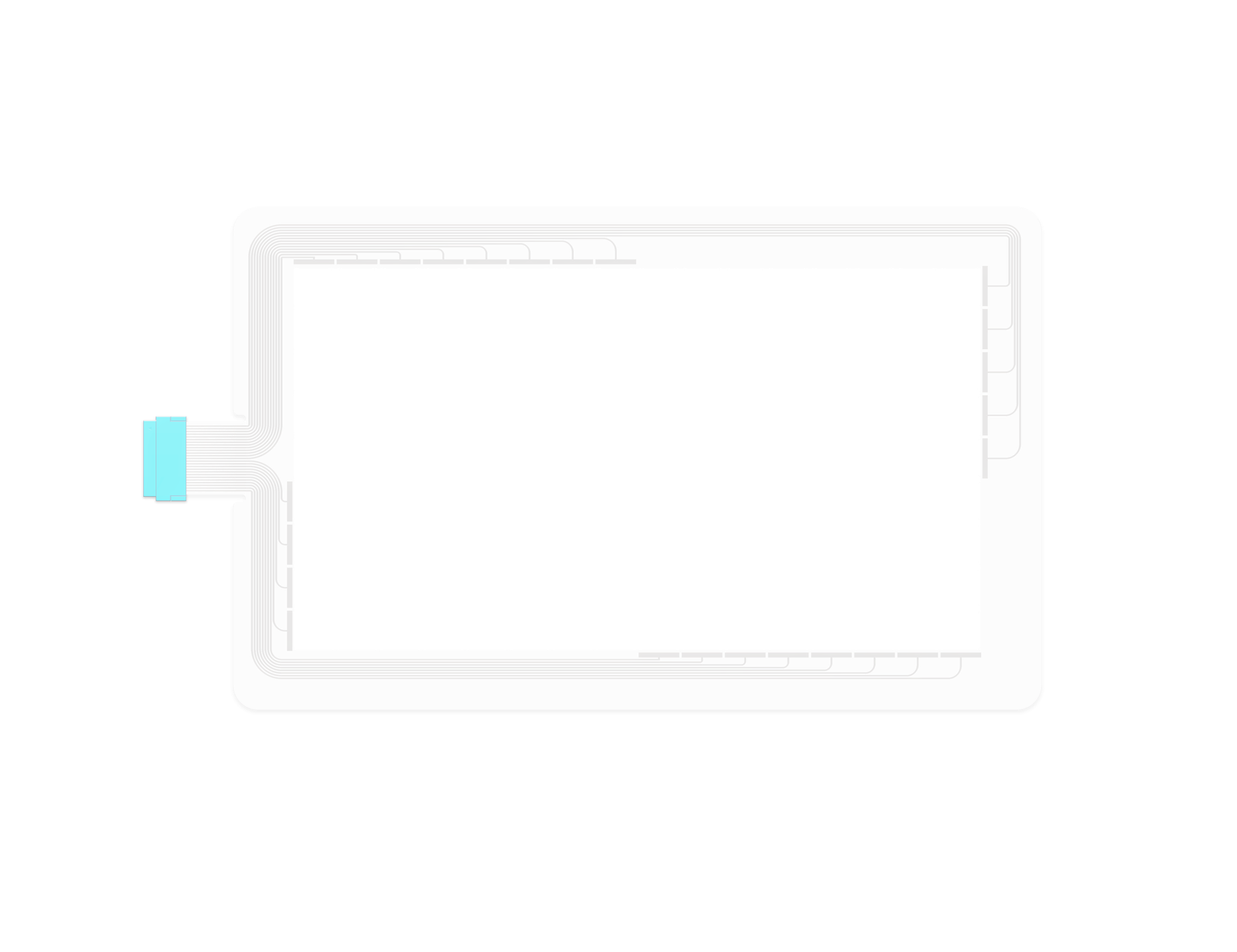

01 — GE microtouch portable tablet
HighContrast, Daylight Readable, Anti-Microbial and designed for use with Laytex/Nitrile gloves.
Five-wire resistive touch sensor patternWhite printed-electronics strips with conductive trace detail

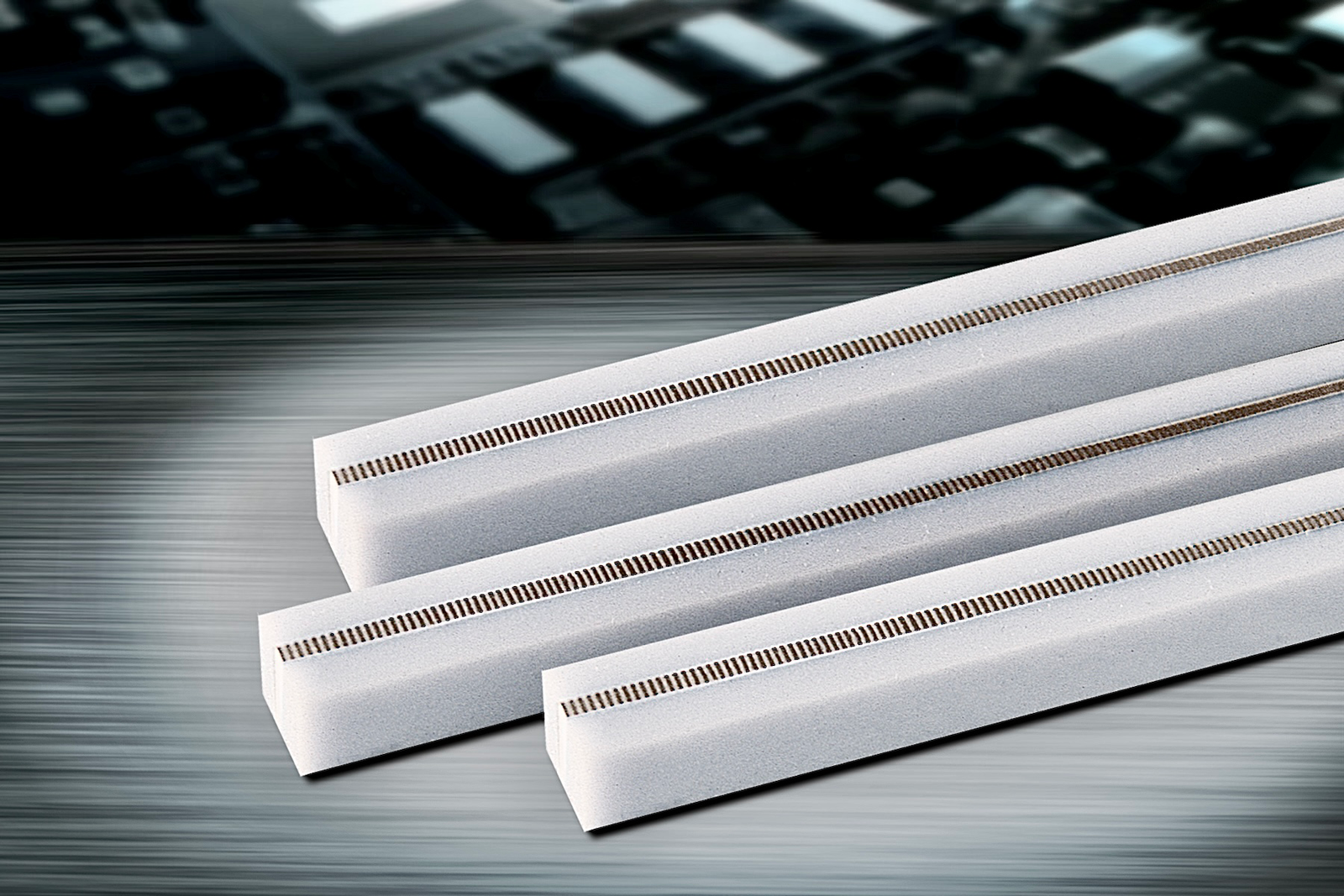

02 — Z-Axis elastomer connectors
A highly efficient method of connecting to a driver board.
Projected capacitive matrix sensor detailPCAP diamond matrix pattern on glass

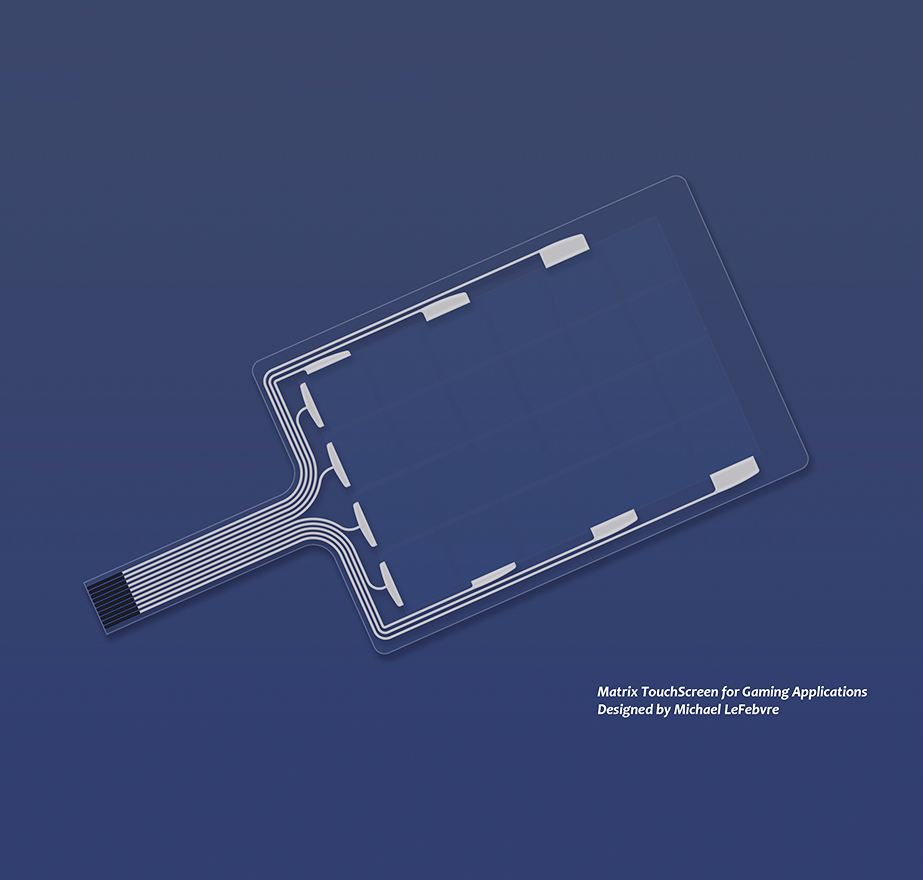

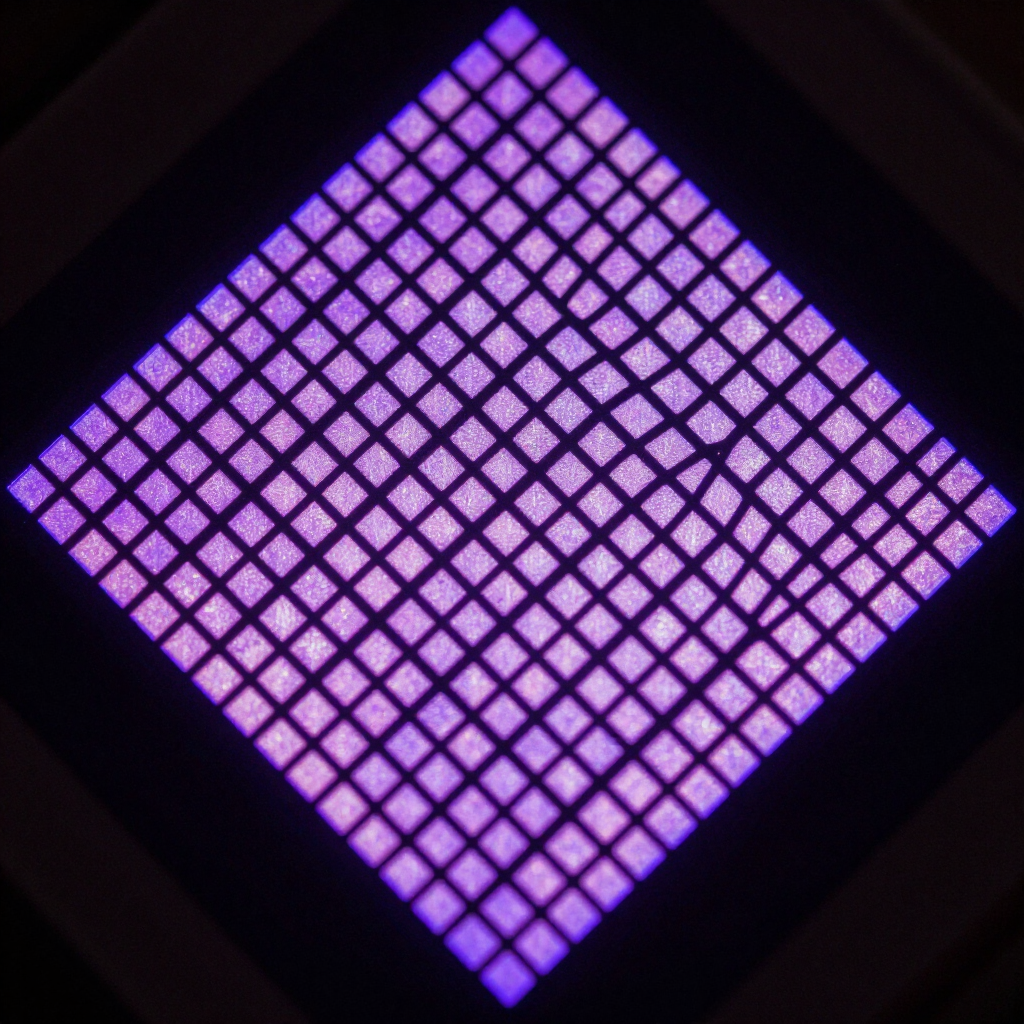

03 — PCAP matrix sensor detail
PCAP diamond matrix — self-capacitance routing tuned for gloved-hand response.
Sealed human-machine interface overlaySealed HMI overlay cross-section detail

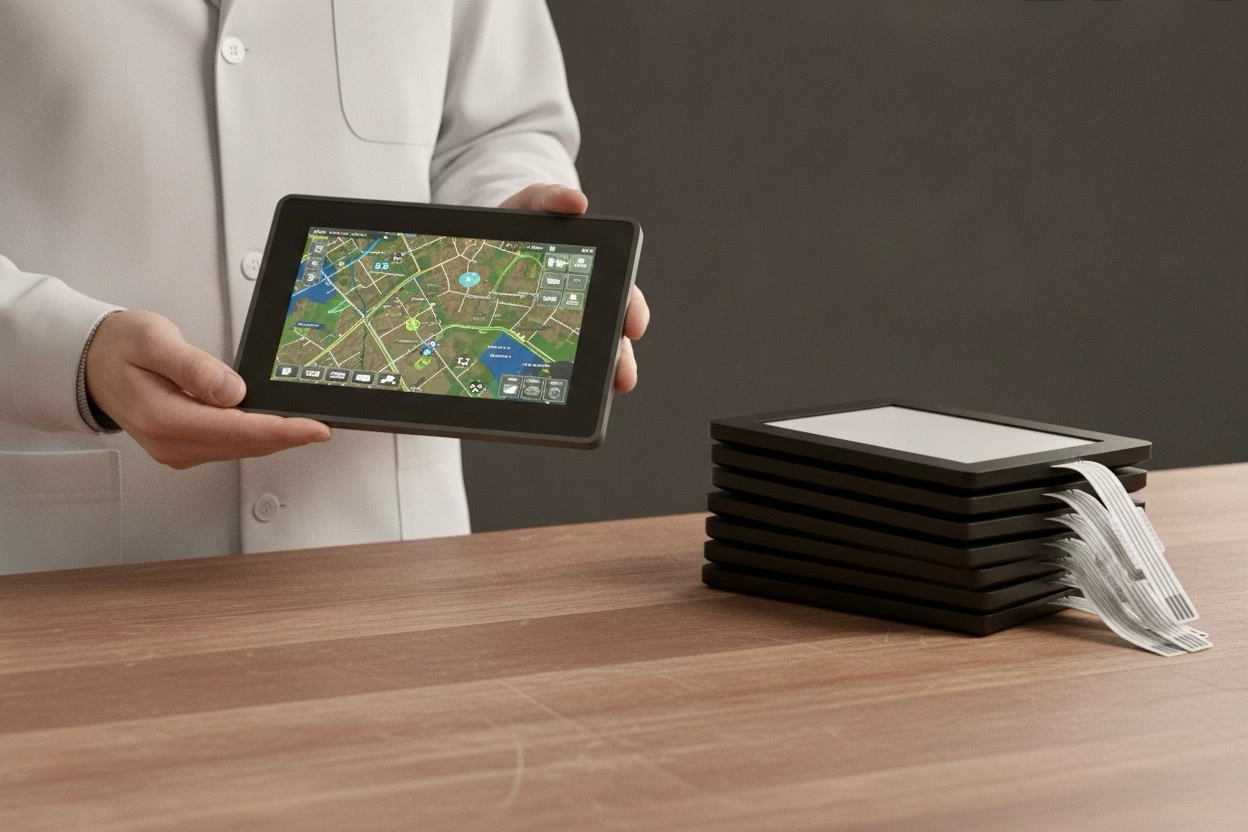

04 — Sealed HMI overlay assembly
Rugged systems with optically bonded, daylight-readable displays and integrated shock/vibration isolation.
Touch screen bezel and gasket detailMetal bezel and rubber gasket seal detail

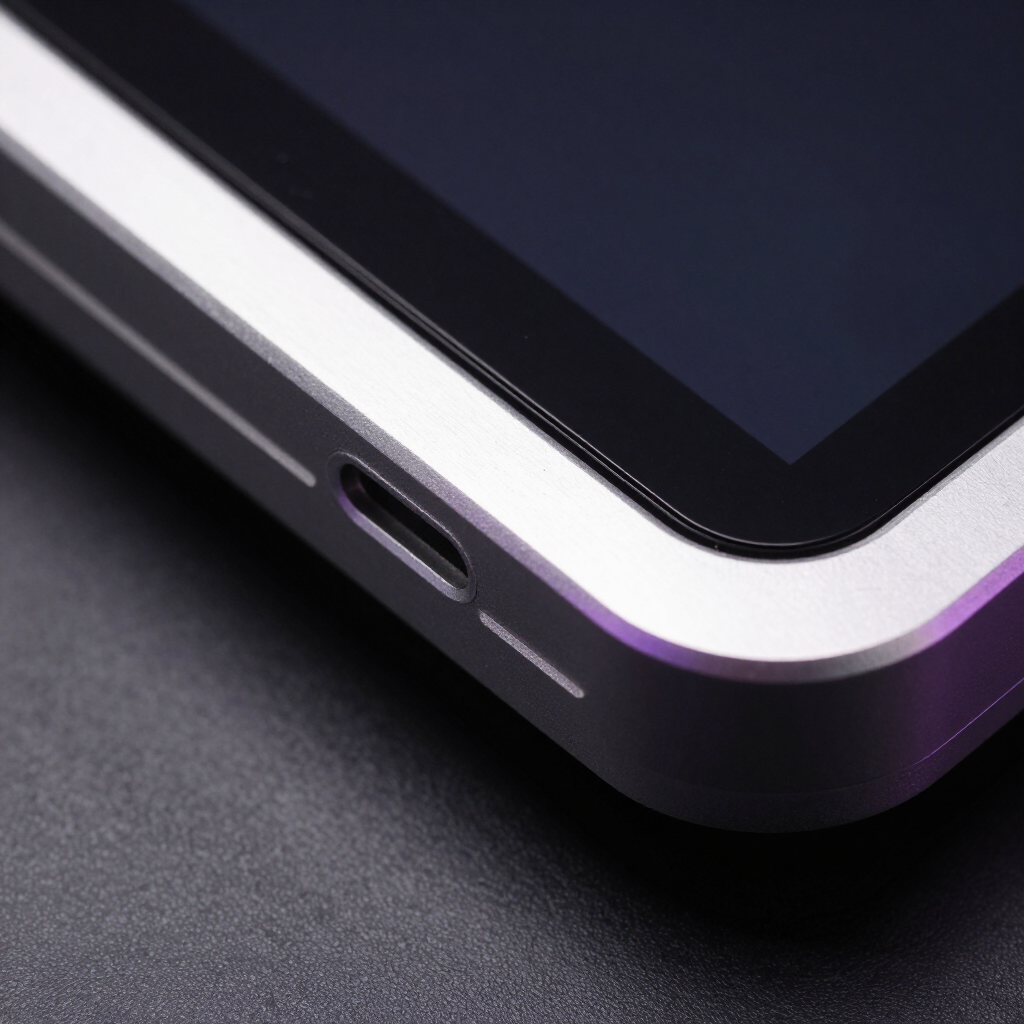

05 — Bezel & gasket detail
Bezel & gasket — IP-rated seal compression engineered for repeated cycling.
Backlit touch screen consoleWhite payment touch screen terminal with contactless sale screen
06 — Backlit touch console
Backlit console — edge-lit legend layer balanced against daylight readability. Anti-Microbial Hard-Coated surface protection.
