Thin-film and printed electronics design

Assembly Tooling Design

Custom Designed Assembly Tooling for Specialized Applications

Portable touch tablet devicePortable touch tablet edge bezel and connector detail
01 — GE microtouch portable tablet

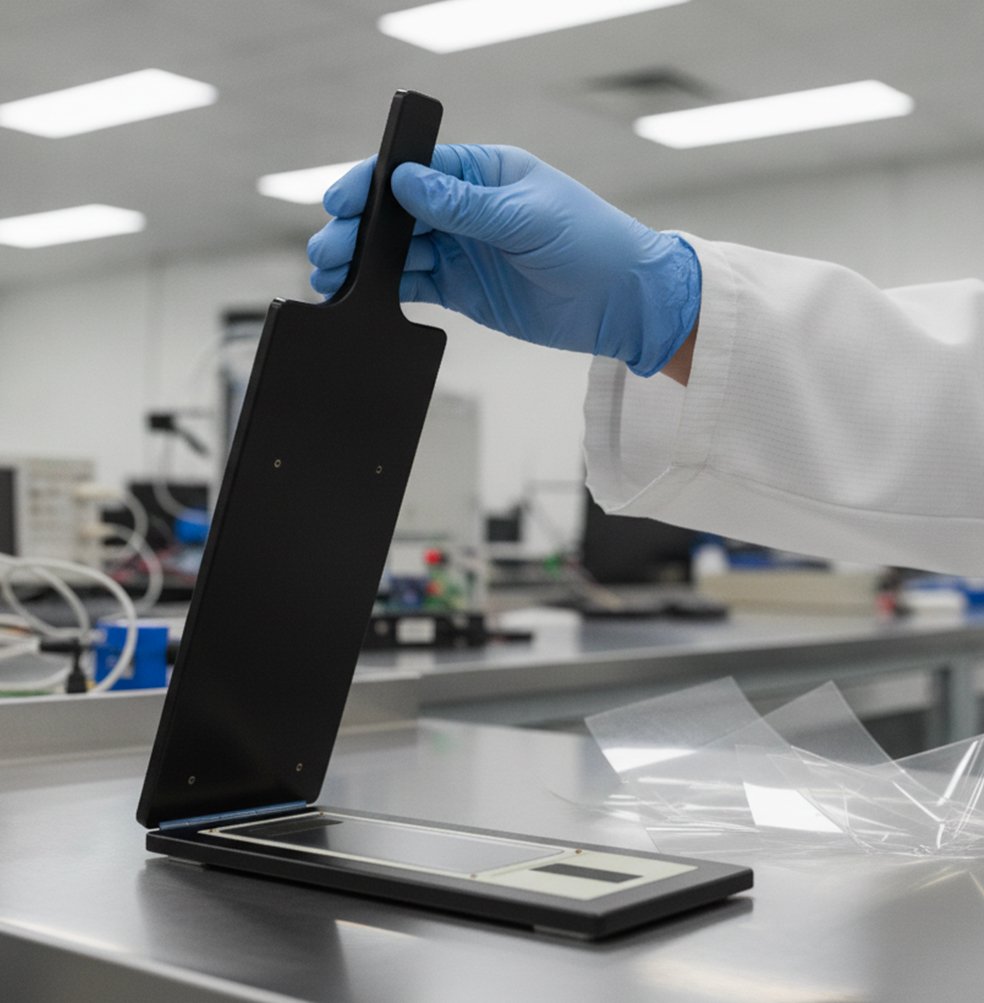

Laser cut 9mm black acrylic with brass .125” register pins
Five-wire resistive touch sensor patternAssembly tooling fixture with probes and a thermal-image display
02 — Z-Axis elastomer connectors
Aluminum Heat Sink support fixture for testing current inrush

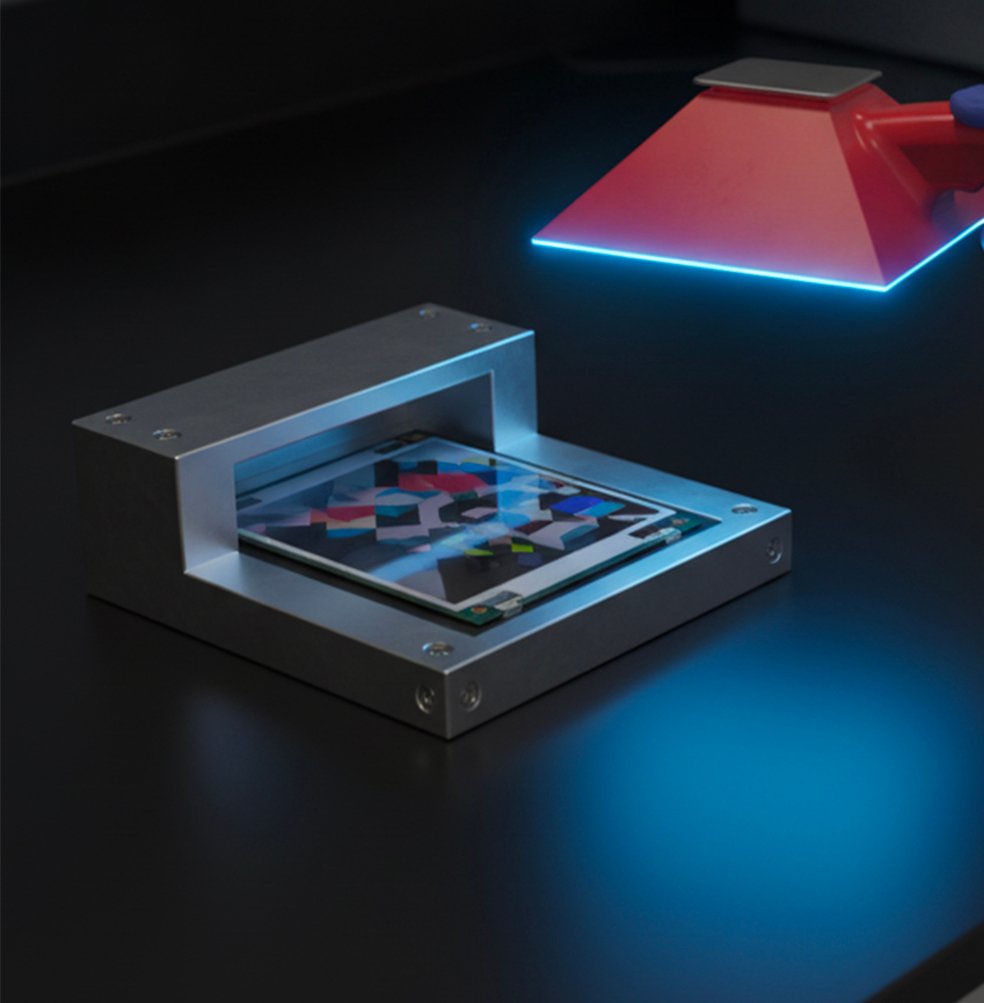

Gloved hand holding a red UV curing lamp over a metal assembly fixturePCAP diamond matrix pattern on glass
03 — PCAP matrix sensor detail

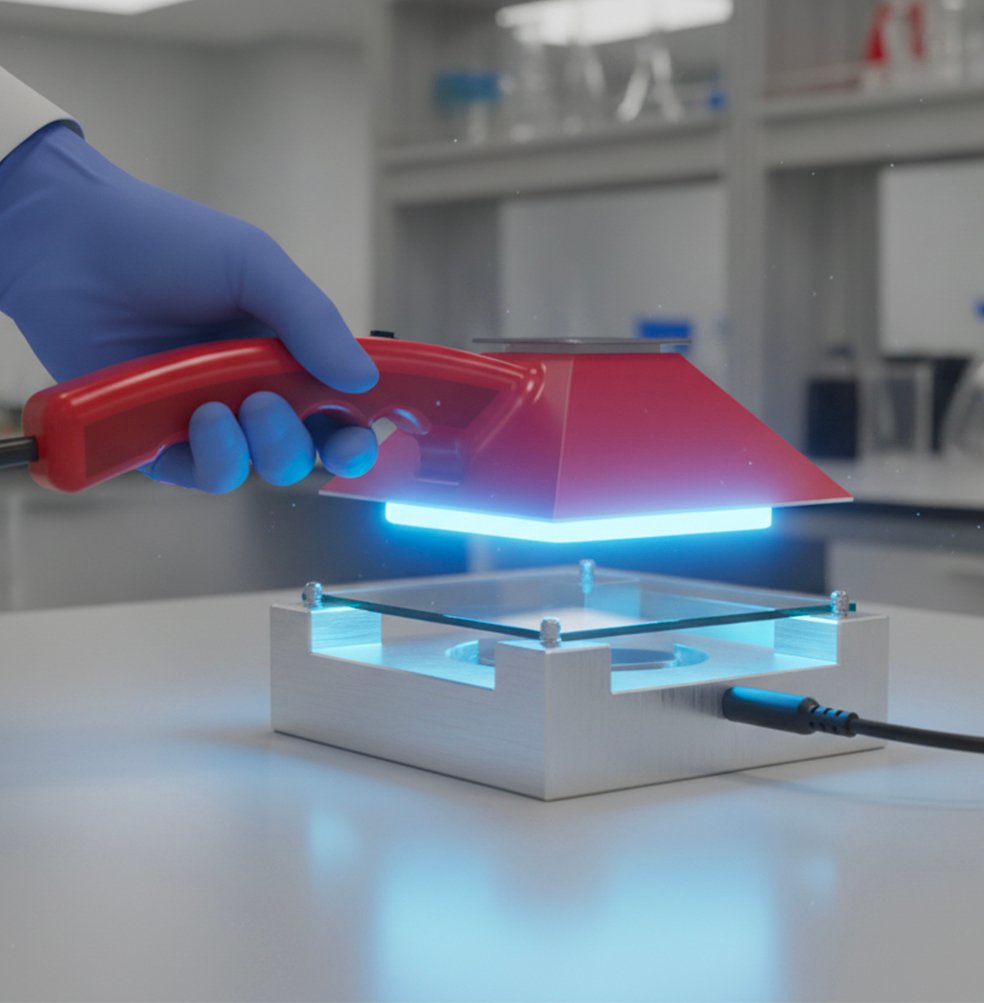

Calibration test fixture for Optical Bonding handheld curing unit, quantifying wavelength peak and total output power.
Sealed human-machine interface overlaySealed HMI overlay cross-section detail
04 — Sealed HMI overlay assembly

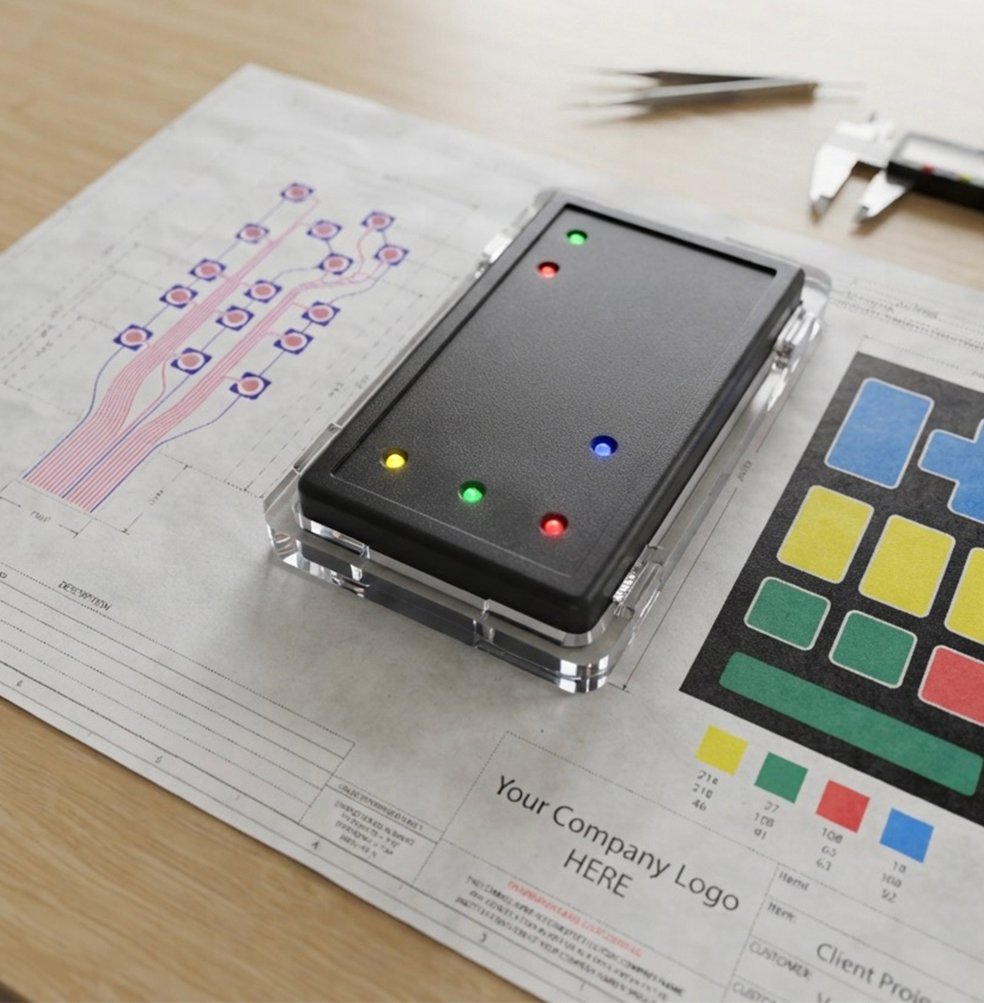

Precision Assembly Fixture for alignment of circuit board and membrane switch assembly to enclosure case.

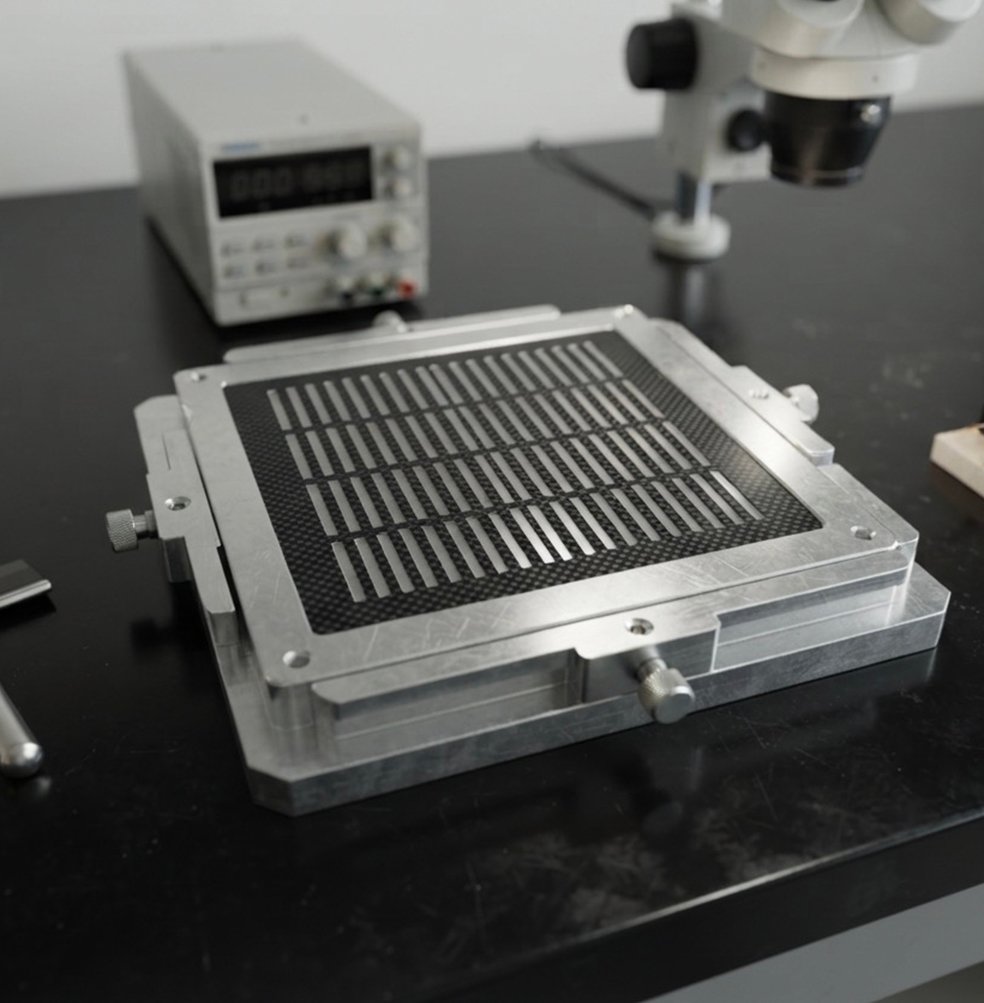

Metal bezel and rubber gasket seal detailTouch screen bezel and gasket detail
05 — Bezel & gasket detail

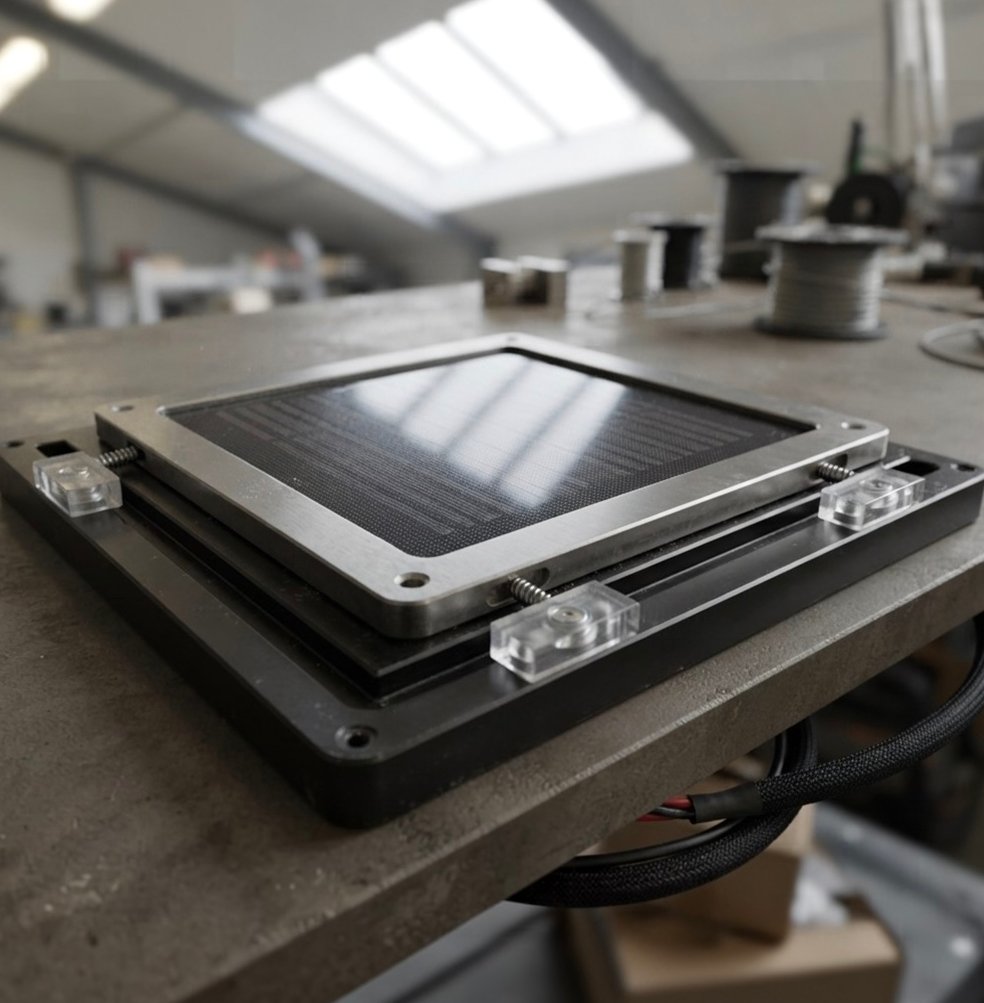

Rapid Swapping Test Fixture for validation of ruggedized military PVC modules.

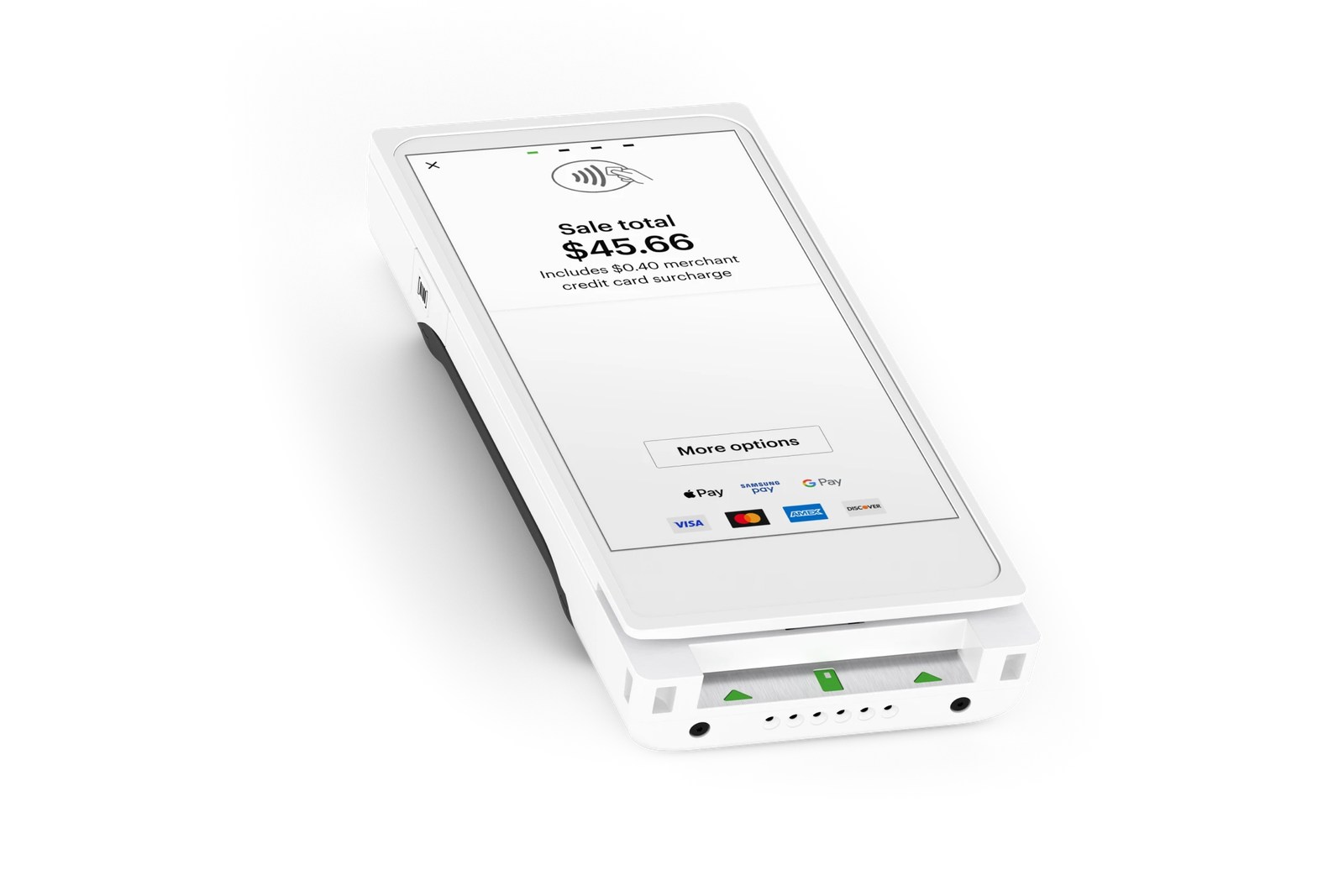

Backlit touch screen consoleWhite payment touch screen terminal with contactless sale screen
06 — Backlit touch console
Backlit console — edge-lit legend layer balanced against daylight readability. Anti-Microbial Hard-Coated surface protection.
